Datasheet Details
| Part number | A1598 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 250.62 KB |
| Description | 2SA1598 |
| Datasheet |
 A1598-SavantIC.pdf
|
| Part number | A1598 |
|---|---|
| Manufacturer | SavantIC |
| File Size | 250.62 KB |
| Description | 2SA1598 |
| Datasheet |
A1598-SavantIC.pdf
|

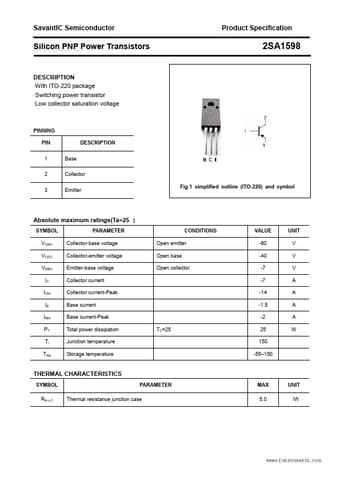

With ITO-220 package Switching power transistor Low collector saturation voltage PINNING PIN DESCRIPTION 1 Base 2 Collector 3 Emitter Product Specification 2SA1598 Fig.1 simplified outline (ITO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER VCBO Collector-base voltage VCEO Collector-emitter voltage VEBO IC Emitter-base voltage Collector current ICM Collector current-Peak IB Base current IBM Base current-Peak PT Total power dissipation Tj Junc
