With TO-3PML package
Complement to type 2SC4387
APPLICATIONS
Audio and general purpose
PINNING PIN 1 2 3
DESCRIPTION Base Collector Emitter
Product Specification
2SA1672
Fig.1 simplified outline (TO-3PML) and symbol
Absolute maximum ratings(Ta=25 )
SYMBOL
PARAMETER
CONDITIONS
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

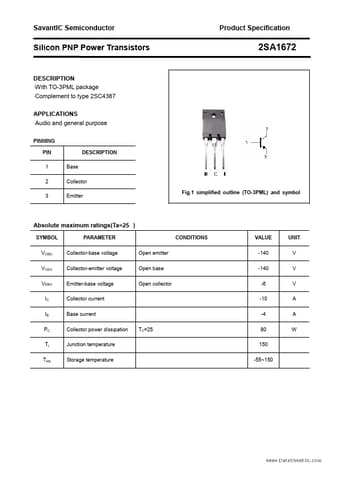

SavantIC Semiconductor
wSwiwl.iDcatoaSnheePt4NU.cPomPower Transistors
DESCRIPTION ·With TO-3PML package ·Complement to type 2SC4387
APPLICATIONS ·Audio and general purpose
PINNING PIN 1 2 3
DESCRIPTION Base Collector Emitter
Product Specification
2SA1672
Fig.1 simplified outline (TO-3PML) and symbol
Absolute maximum ratings(Ta=25 )
SYMBOL
PARAMETER
CONDITIONS
VCBO VCEO VEBO
IC IB PC Tj Tstg
Collector-base voltage
Open emitter
Collector-emitter voltage
Open base
Emitter-base voltage
Open collector
Collector current
Base current
Collector power dissipation TC=25 Junction temperature
Storage temperature
VALUE -140 -140 -6 -10 -4 80 150
-55~150
UNIT V V V A A W
SavantIC Semiconductor
Silicon PNP Power Transistors
