C1170 Datasheet - SavantIC

C1170 Silicon NPN Transistor

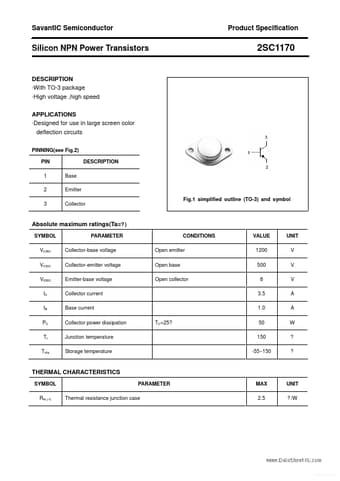

*With TO-3 package *High voltage ,high speed APPLICATIONS *Designed for use in large screen color deflection circuits PINNING(see Fig.2) PIN 1 2 3 Base Emitter Collector Fig.1 simplified outline (TO-3) and symbol DESCRIPTION Absolute maximum ratings(Ta=? ) SYMBOL VCBO VCEO VEBO IC IB PC.
