Part number C2336
Manufacturer SavantIC
File Size 162.68 KB
Description 2SC2336
Datasheet download datasheet C2336-SavantIC.pdf

C2336 Product details

Description

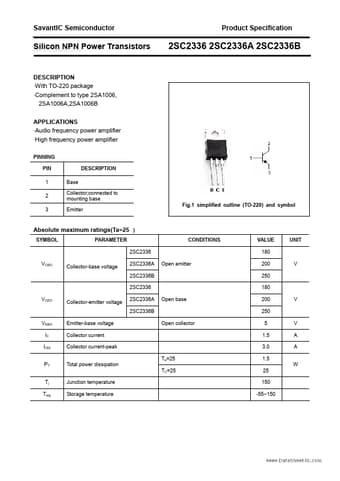

With TO-220 package Complement to type 2SA1006, 2SA1006A,2SA1006B APPLICATIONS Audio frequency power amplifier High frequency power amplifier PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-220) and symbol Absolute maximum ratings(Ta=25 ) SYMBOL PARAMETER CONDITIONS 2SC2336 VCBO Collector-base voltage 2SC2336A Open emitter 2SC2336B 2SC2336 VCEO Collector-emitter voltage 2SC2336A 2SC2336B Open base
