C3258 Datasheet, 2sc3258, SavantIC

PDF File Details

Part number:

C3258

Manufacturer:

SavantIC

File Size:

177.65kb

Download:

📄 Datasheet

Description:

2sc3258.

  • With TO-220 package
  • Complement to type 2SA1293
  • Low collector saturation voltage
  • High speed switch

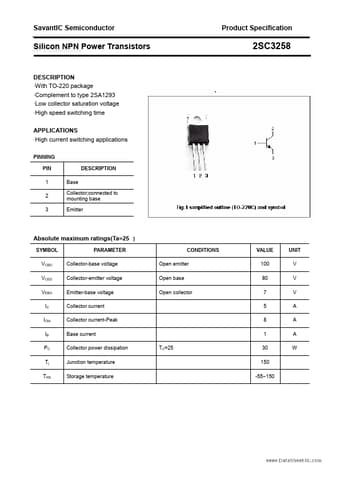

  • Datasheet Preview: C3258 📥 Download PDF (177.65kb)
    Page 2 of C3258 Page 3 of C3258

    C3258 Application

    • Applications
    • High current switching applications PINNING PIN 1 2 3 DESCRIPTION Base Collector;connected to mounting base Emitter Product
