C3255 - 2SC3255

C3255 Description

Ordering number:ENN1201D PNP/NPN Epitaxial Planar Silicon Transistors 2SA1291/2SC3255 60V/10A High-Speed Switching Applications Applications * V.

C3255 Features

* Low saturation voltage.
* Excellent current dependence of hFE.
* Short switching time. ( ) : 2SA1291 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pul

C3255 Applications

* Applications
* Various inductance lamp drivers for electrical equipment.
* Inverters, converters (strobo, flash, fluorescent lamp lighting circuit).
* Power amp (high power car stereo, motor controller).
* High-speed switching (switching regulator, driver). Package Dimensions unit

📥 Download Datasheet

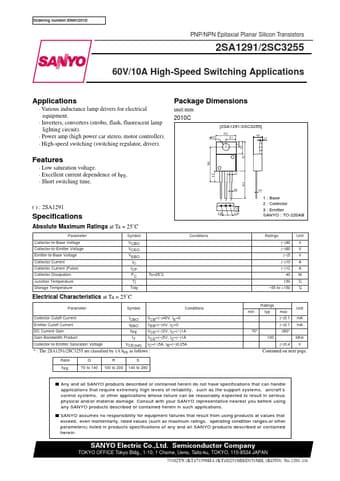

Preview of C3255 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3255
Manufacturer
Sanyo
File Size
38.56 KB
Datasheet
C3255-Sanyo.pdf
Description
2SC3255
