C3294 Datasheet, 2sc3294, Sanyo

C3294 Features

  • 2sc3294
  • High DC current gain.
  • Large current capacity and wide ASO.
  • On-chip Zener diode of 60±10V between collector and base.
  • Uniformity in collector-to-b

PDF File Details

Part number:

C3294

Manufacturer:

Sanyo

File Size:

31.31kb

Download:

📄 Datasheet

Description:

2sc3294.

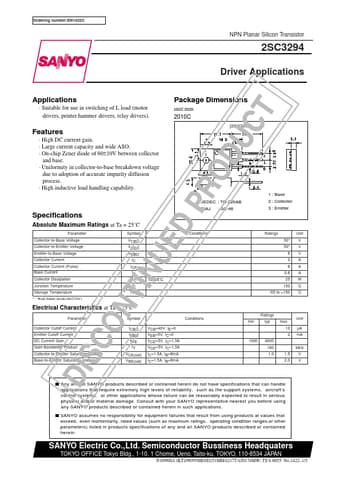

Datasheet Preview: C3294 📥 Download PDF (31.31kb)
Page 2 of C3294 Page 3 of C3294

C3294 Application

  • Applications Applications
  • Suitable for use in switching of L load (motor drivers, printer hammer drivers, relay drivers). Package Dimens
