D2331 Datasheet - SavantIC

D2331 2SD2331

*With TO-3PFa package *High voltage;high speed *Built-in damper diode APPLICATIONS *For color TV horizontal output applications PINNING PIN 1 2 3 Base Collector Emitter DESCRIPTION Absolute maximum ratings(Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base volta.

D2331_SavantIC.pdf

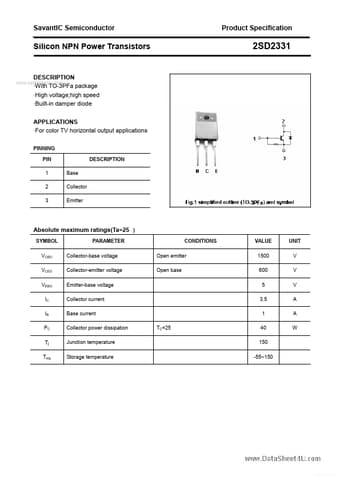

Preview of D2331 PDF
D2331 Datasheet Preview Page 2 D2331 Datasheet Preview Page 3

Datasheet Details

Part number:

D2331

Manufacturer:

SavantIC

File Size:

163.00 KB

Description:

2sd2331.
