S2055F - SILICON POWER TRANSISTOR

Product Overview

SavantIC

Datasheet Details

Part number	S2055F
Manufacturer	SavantIC
File Size	265.20 KB
Description	SILICON POWER TRANSISTOR
Datasheet	S2055F Datasheet
Additional preview pages of the S2055F datasheet.

Product details

Description

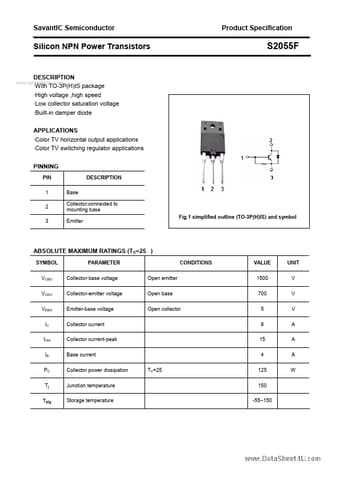

With TO-3P(H)IS package High voltage ,high speed Low collector saturation voltage Built-in damper diode APPLICATIONS Color TV horizontal output applications Color TV switching regulator applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter Fig.1 simplified outline (TO-3P(H)IS) and symbol DESCRIPTION ABSOLUTE MAXIMUM RATINGS (TC=25 ) SYMBOL VCBO VCEO VEBO IC ICM IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitt
