S2000N

SILICON POWER TRANSISTOR

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor TE Connectivity ES2000-NO.1-C1-0-27MM HEATSHRINK 0.225" X 0.088' BLACK DigiKey 11948 1000 units
$0.1

S2000N Datasheet (266.15 KB)

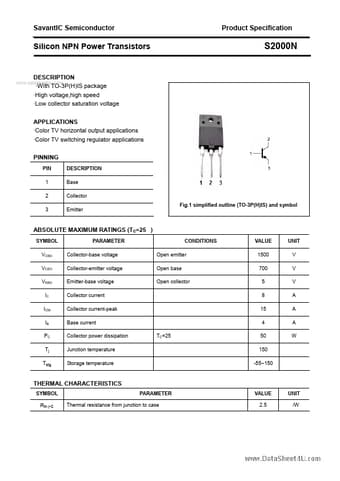

Preview of S2000N PDF

Datasheet Details

Part number:

S2000N

Manufacturer:

SavantIC

File Size:

266.15 KB

Description:

Silicon power transistor.

S2000N General Description


*With TO-3P(H)IS package
*High voltage,high speed
*Low collector saturation voltage APPLICATIONS
*Color TV horizontal output applications
*Color TV switching regulator applications PINNING PIN 1 2 3 DESCRIPTION Base Collector Emitter Fig.1 simplified outline (TO-3P(H)IS) and symb.
