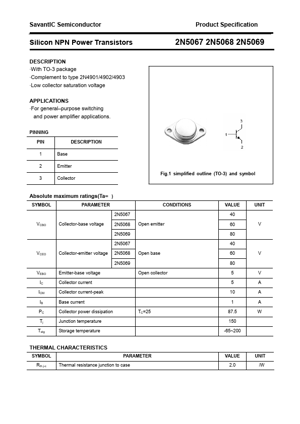

2N5068 Datasheet, Transistors, Savantic

PDF File Details

Part number:

2N5068

Manufacturer:

Savantic

File Size:

108.99kb

Download:

📄 Datasheet

Description:

Silicon npn power transistors.

With TO-3 package

Complement to type 2N4901/4902/4903

Low collector saturation voltage APPLICATIONS

2N5068 Application

• Applications
• For general
    –purpose switching and power amplifier applications. PINNING PIN DESCRIPTION 1 Base 2 Emitter
