2N5880 Datasheet, Transistors, Savantic

PDF File Details

Part number:

2N5880

Manufacturer:

Savantic

File Size:

144.09kb

Download:

📄 Datasheet

Description:

(2n5879 / 2n5880) silicon pnp power transistors.

  • With TO-3 package
  • Low collector saturation voltage
  • Complement to type 2N5881 2N5882 APPLICATIONS

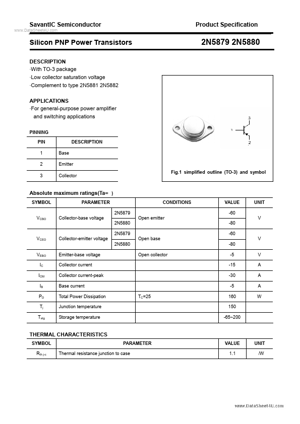

  • Datasheet Preview: 2N5880 📥 Download PDF (144.09kb)
    Page 2 of 2N5880 Page 3 of 2N5880

    2N5880 Application

    • Applications
    • For general-purpose power amplifier and switching applications PINNING PIN 1 2 3 Base Emitter Collector DESCRIPTION 2N5879 2N
