D44H11 - Silicon NPN Power Transistors

Savantic

The D44H11 by Savantic is a Silicon NPN Power Transistors. Below is the official datasheet preview.

📥 Download Datasheet

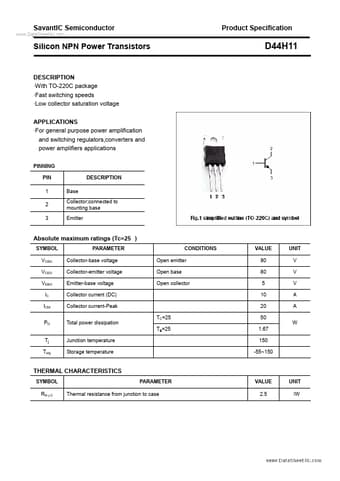

D44H11 Silicon NPN Power Transistors by Savantic - Datasheet Preview — Official preview page of the **D44H11** Silicon NPN Power Transistors datasheet (Savantic).

Datasheet Details

Part number	D44H11
Manufacturer	Savantic
File Size	151.78 KB
Description	Silicon NPN Power Transistors
Datasheet	D44H11_Savantic.pdf
Additional preview pages of the D44H11 datasheet.

D44H11 Product details

Description

With TO-220C package Fast switching speeds Low collector saturation voltage APPLICATIONS For general purpose power amplification and switching regulators,converters and power amplifiers applications PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION Absolute maximum ratings (Tc=25 ) SYMBOL VCBO VCEO VEBO IC ICM PD Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current (DC) Collector current-Peak
