D998 - Silicon NPN Power Transistors

Datasheet Summary

Description

With TO-3PML package Complement to type 2SB778 APPLICATIONS High power amplifier applications Recommended for 45~50W audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Absolute maximum ratings

Savantic

📥 Download Datasheet

Datasheet Details

Part number	D998
Manufacturer	Savantic
File Size	204.56 KB
Description	Silicon NPN Power Transistors
Datasheet	D998 Datasheet
Additional preview pages of the D998 datasheet.

📁 Similar Datasheet

D998 - TRIPLE DIFFUSED NPN TRANSISTOR (KEC)
D99-516E2P2B2M1 - Ruggedized 5.0 Display Head Assembly (WEDC)
D99-6F5E2P1B3M0 - RUGGEDIZED 5.6 DISPLAY HEAD ASSEMBLY (WEDC)
D9916L - N-Channel MOSFET (SamHop Microelectronics)

Other Datasheets by Savantic

Full PDF Text Transcription

Click to expand full text

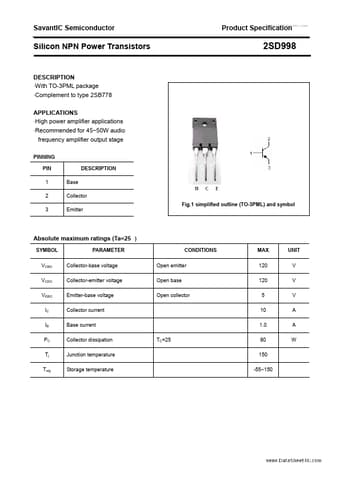

SavantIC Semiconductor Product Specification www.DataSheet4U.com Silicon NPN Power Transistors 2SD998 DESCRIPTION ·With TO-3PML package ·Complement to type 2SB778 APPLICATIONS ·High power amplifier applications ·Recommended for 45~50W audio frequency amplifier output stage PINNING PIN 1 2 3 Base Collector Emitter Fig.1 simplified outline (TO-3PML) and symbol DESCRIPTION Absolute maximum ratings (Ta=25 ) SYMBOL VCBO VCEO VEBO IC IB PC Tj Tstg PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current Collector dissipation Junction temperature Storage temperature TC=25 CONDITIONS Open emitter Open base Open collector MAX 120 120 5 10 1.0 80 150 -55~150 UNIT V V V A A W SavantIC Semiconductor Product Specification www.DataSheet4U.
