D99-516E2P2B2M1 Ruggedized 5.0 Display Head Assembly

Backlight heater return Input signal used to shutdown the lamp and heater power, the control circuitry will still be powered. Positive side of the differential voltage control for the backlight. Negative side of the differential voltage control for the backlight. (Normally Grounded) This is the powe.

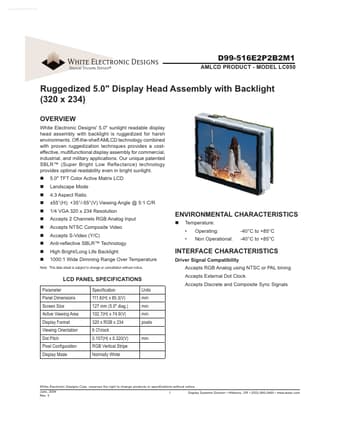

www.DataSheet4U.com White Electronic Designs Display Systems Division D99-516E2P2B2M1 AMLCD PRODUCT - MODEL LC050 Ruggedized 5.0" Display Head Assembly with Backlight (320 x 234) OVERVIEW White Electronic Designs' 5.0" sunlight readable display head assembly with backlight is ruggedized for harsh environments. Off-the-shelf AMLCD technology combined with proven ruggedization techniques provides a costeffective, multifunctional display assembly for commercial, industrial, and military applicat.

D99-516E2P2B2M1 Features

* Dual Mode NTSC (M) and PAL F Timing for RGB Video and NTSC Timing for Composite Video Supports Two Sets of Analog RGB Video Signals NTSC Composite or S-Video Signals Display Resolution 320 x 234 (NTSC) and 320 x 273 (PAL) External Clock Mode Pin1 Dupont/Berg Part Number 69168-110
