SSC2139 - Low Dropout Voltage Regulator

SeCoS Halbleitertechnologie

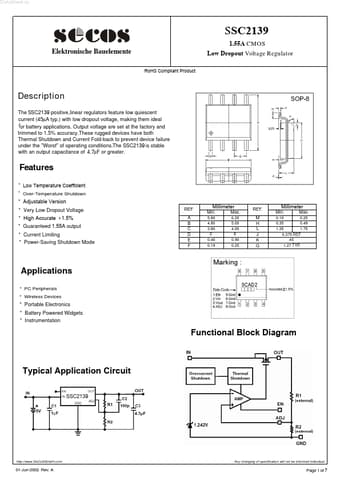

SSC2139 Datasheet Preview — Preview of SSC2139 PDF

Datasheet Details

Part number	SSC2139
Manufacturer	SeCoS Halbleitertechnologie
File Size	1.28 MB
Description	Low Dropout Voltage Regulator
Datasheet	SSC2139_SeCoSHalbleitertechnologie.pdf

SSC2139 Product details

Description

The SSC2139 positive,linear regulators feature low quiescent current (45µA typ.) with low dropout voltage, making them ideal for battery applications.

Features

Low Temperature Coefficient.
Over-Temperature Shutdown.
Adjustable Version.
Very Low Dropout Voltage.
High Accurate ± 1.5%.
Guaranteed 1.55A output.
Current Limiting.
Power-Saving Shutdown Mode REF. A B C D E F Min. 5.80 4.80 3.80 0 0.40 0.19 Millimeter Max. 6.20 5.00 4.00 8 0.90 0.25 REF. M H L J K G Min. Millimeter Max. 0.10 0.25 0.35 0.49 1.35 1.75 0.375 REF. 45 1.27 TYP.
