2N4126 PNP Plastic Encapsulated Transistor

2N4126 Description

Elektronische Bauelemente 2N4126 -0.2 A, -25 V PNP Plastic Encapsulated Transistor RoHS Compliant Product A suffix of “-C” specifies halogen & lead-.

2N4126 Applications

* Complementary of the 2N4124 G H Collector
*   Base  Emitter J AD B K E CF TO-92  Emitter  Base
* Collector REF. A B C D E F G H J K Millimeter Min. Max. 4.40 4.70 4.30 4.70 12.70 - 3.30 3.81 0.36 0.56 0.36 0.51 1.27 TYP. 1.10 - 2.42 2.66 0.36 0.76 ABSOLUT

📥 Download Datasheet

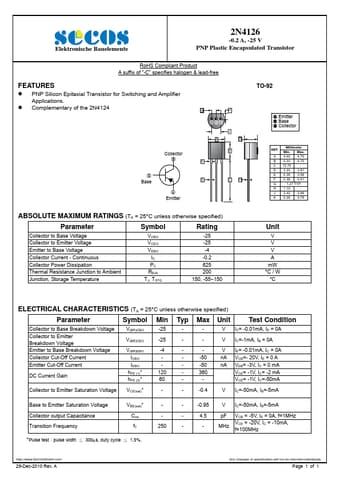

Preview of 2N4126 PDF

Datasheet Details

Part number
2N4126
Manufacturer
SeCoS
File Size
111.51 KB
Datasheet
2N4126-SeCoS.pdf
Description
PNP Plastic Encapsulated Transistor
