2N4402 - PNP Transistor

Datasheet Summary

Features

  • General Purpose Amplifier Transistor TO-92 Collector.
  •   Base  Emitter GH J AD B K E CF  Emitter  Base.
  • Collector REF. A B C D E F G H J K Millimeter Min. Max. 4.40 4.70 4.30 4.70 12.70 - 3.30 3.81 0.36 0.56 0.36 0.51 1.27 TYP. 1.10 - 2.42 2.66 0.36 0.76.

📥 Download Datasheet

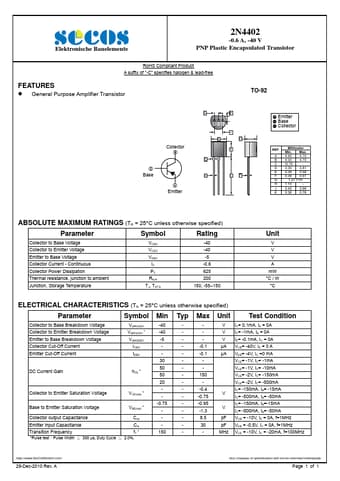

Datasheet preview – 2N4402

Datasheet Details

Part number 2N4402
Manufacturer SeCoS
File Size 106.03 KB
Description PNP Transistor
Datasheet download datasheet 2N4402 Datasheet
