2N4401 - NPN switching transistor

Datasheet Summary

Description

NPN switching transistor in a TO-92; SOT54 plastic package.

PNP complement: 2N4403.

Simplified outline (TO-92; SOT54) and symbol.

Features

  • High current (max. 600 mA).
  • Low voltage (max. 40 V).

📥 Download Datasheet

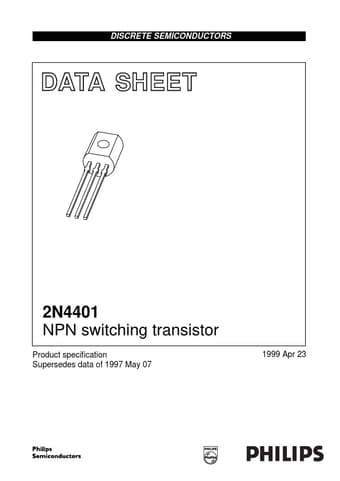

Datasheet preview – 2N4401

Datasheet Details

Part number 2N4401
Manufacturer NXP
File Size 46.81 KB
Description NPN switching transistor
