2N4401SC - EPITAXIAL PLANAR NPN TRANSISTOR

2N4401SC Description

SEMICONDUCTOR TECHNICAL DATA GENERAL PURPOSE APPLICATION.SWITCHING APPLICATION..

2N4401SC Features

* Complementary to the 2N4403SC MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature VCBO VCEO VEBO IC PC
* Tj 75 40 6 600 350 150 Storage Temperature Ran

📥 Download Datasheet

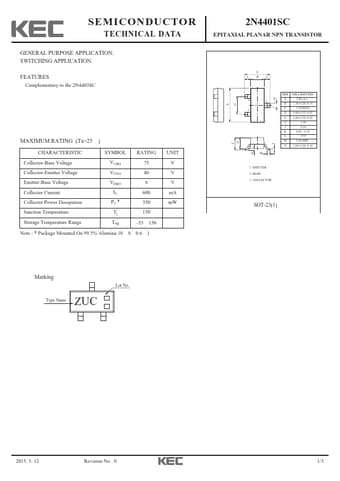

Preview of 2N4401SC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N4401SC
Manufacturer
KEC
File Size
520.04 KB
Datasheet
2N4401SC-KEC.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
