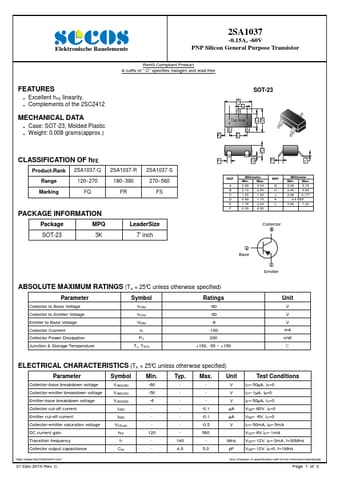

* Excellent hFE linearity. Complements of the 2SC2412 MECHANICAL DATA Case: SOT-23, Molded Plastic Weight: 0.008 grams(approx.) SOT-23 A L 3 Top View CB 12 KE 1 3 2 CLASSIFICATION OF hFE Product-Rank 2SA1037-Q Range 120~270 Marking FQ 2SA1037-R 180~390 FR 2SA1037-S 270~560 FS PACKAGE INF
2SA1037
SeCoS
368.04 KB
Pnp silicon general purpose transistor.
Elektronische Bauelemente
2SA1037
-0.15A, -60V PNP Silicon General Purpose Transistor
RoHS Compliant Product A suffix of “-C” specifies halogen and .
