2SA1162 - PNP Silicon Transistor

Features

SOT-23 A 3 Low Noise: NF=1 dB(Typ. ), 10 dB(Max. ) Complements of the 2SC2712 L 3.

SeCoS

Datasheet Details

Part number	2SA1162
Manufacturer	SeCoS
File Size	350.87 KB
Description	PNP Silicon Transistor
Datasheet	2SA1162 Datasheet
Additional preview pages of the 2SA1162 datasheet.

📁 Similar Datasheet

2SA1162 - Silicon PNP Transistor (Toshiba Semiconductor)
2SA1162 - PNP Transistor (HOTTECH)
2SA1162 - Silicon PNP Epitaxial Type Transistor (Bruckewell)
2SA1162 - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)
2SA1162 - Silicon Epitaxial Planar Transistor (GME)
2SA1162 - Plastic-Encapsulated Transistors (TRANSYS Electronics Limited)
2SA1162 - Silicon PNP Transistor (Kexin)
2SA1162 - TRANSISTOR (Jin Yu Semiconductor)
2SA1162 - PNP EPITAXIAL SILICON TRANSISTOR (WEJ)
2SA1160 - Silicon PNP Epitaxial Type Transistor (Toshiba Semiconductor)

Other Datasheets by SeCoS

2SA1179 - PNP Silicon Plastic Encapsulated Transistor
2SA1013 - PNP Transistor
2SA1015K - PNP Transistor
2SA1020 - PNP Transistor
2SA1036 - PNP Silicon Transistor
2SA1036K - PNP Silicon General Purpose Transistor
2SA1037 - PNP Silicon General Purpose Transistor
2SA1048 - PNP Plastic Encapsulated Transistor

Full PDF Text Transcription

Click to expand full text

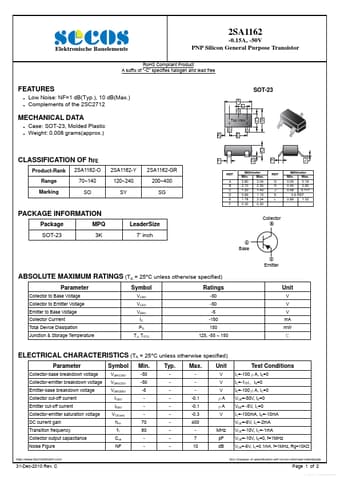

2SA1162 Elektronische Bauelemente -0.15A, -50V PNP Silicon General Purpose Transistor RoHS Compliant Product A suffix of “-C” specifies halogen and lead free FEATURES   SOT-23 A 3 Low Noise: NF=1 dB(Typ.), 10 dB(Max.) Complements of the 2SC2712 L 3 MECHANICAL DATA   Top View 1 2 Case: SOT-23, Molded Plastic Weight: 0.008 grams(approx.) C B 1 2 K E D CLASSIFICATION OF hFE Product-Rank Range Marking 2SA1162-O 70~140 SO 2SA1162-Y 120~240 SY 2SA1162-GR 200~400 SG F REF. A B C D E F G Millimeter Min. Max. 2.80 3.04 2.10 2.55 1.20 1.40 0.89 1.15 1.78 2.04 0.30 0.50 H REF. G H J K L J Millimeter Min. Max. 0.09 0.18 0.45 0.60 0.08 0.177 0.6 REF. 0.89 1.
