BAV21P, BAV19P Surface Mount Small Signal Switching Diode

BAV21P Description

Elektronische Bauelemente BAV19P/BAV20P/BAV21P Surface Mount Small Signal Switching Diode RoHS Compliant Product A suffix of “-C” specifies halogen .

BAV21P Features

* Low Reverse Current.
* Surface Mount Package Ideally Suited for Automatic Insertion.
* Fast Switching Speed.

BAV21P Applications

* H D SOD-123 Cathode Band G 1 MARKING
* BAV19P: A8
* BAV20P: T2
* BAV21P: T3 PACKAGE INFORMATION Package MPQ SOD-123 3K Leader Size 7 inch 2 F C BA E J REF. A B C D E Millimeter Min. Max. 0.94 1.35 0.10 REF. 1.00 1.30 0.30 0.78 0.08 0.25 REF. F G H J Millimeter Min. Ma

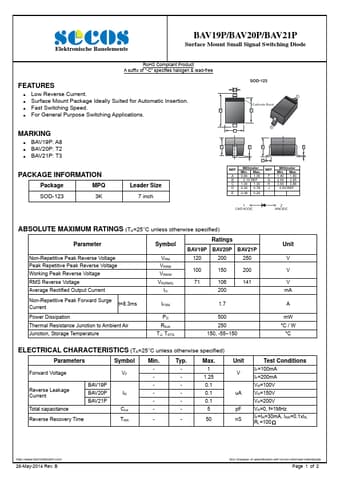

📥 Download Datasheet
