BAV21, BAV17 Small Signal Switching Diodes

Vishay

Description

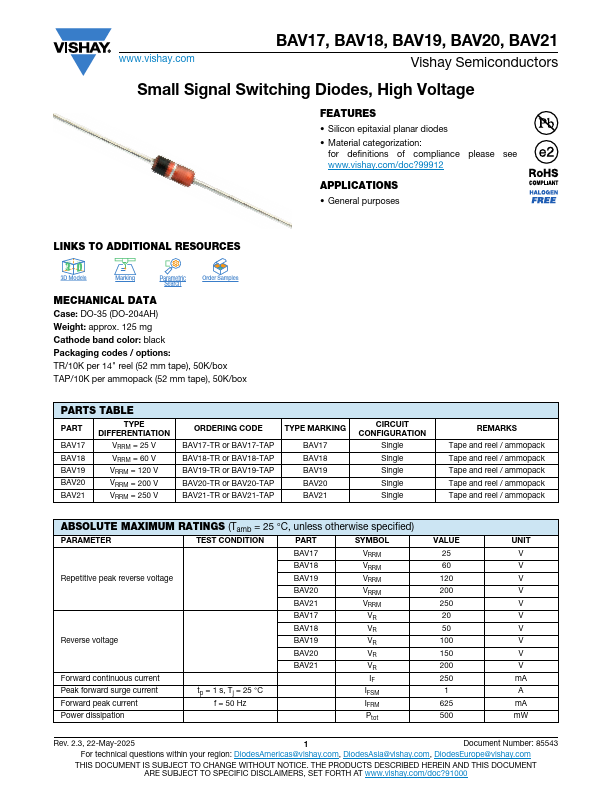

www.vishay.com BAV17, BAV18, BAV19, BAV20, BAV21 Vishay Semiconductors Small Signal Switching Diodes, High Voltage .

📥 Download Datasheet

BAV21 Datasheet Preview — This datasheet PDF includes multiple part numbers: BAV21, BAV17. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BAV21, BAV17
Manufacturer: Vishay ↗
File Size: 99.68 KB
Datasheet: BAV17-Vishay.pdf
Description: Small Signal Switching Diodes
Note: This datasheet PDF includes multiple part numbers: BAV21, BAV17.
Please refer to the document for exact specifications by model.

Features

* Silicon epitaxial planar diodes

Applications

* General purposes LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models Marking Parametric Search Order Samples MECHANICAL DATA Case: DO-35 (DO-204AH) Weight: approx. 125 mg Cathode band color: black Packaging codes / options: TR/10K per 14" reel (52 mm tape), 50K/box TAP/10K per ammopack (52
