D25SB20, D25SB10 (D25SB10 - D25SB100) Molding Single-Phase Bridge Rectifier

D25SB20 Description

D25SB10 ~ D25SB100 Elektronische Bauelemente 100 V ~ 1000 V 25.0 Amp High Current Glass Passivated Molding Single-Phase Bridge Rectifier RoHS Complian.

D25SB20 Features

* Plastic Package has Underwriters Laboratory Flammability Classification 94V-0 This Series is UL listed under the Recognized Component index, file number E231047 Single-in-line package High current capacity with small package Superior thermal conductivity

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: D25SB20, D25SB10. Please refer to the document for exact specifications by model.

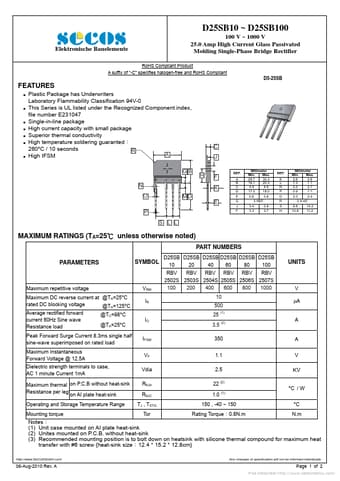

datasheet Preview Page 2

Datasheet Details

Part number
D25SB20, D25SB10
Manufacturer
SeCoS
File Size
411.90 KB
Datasheet
D25SB10_SeCoS.pdf
Description
(D25SB10 - D25SB100) Molding Single-Phase Bridge Rectifier
Note
This datasheet PDF includes multiple part numbers: D25SB20, D25SB10.
Please refer to the document for exact specifications by model.
