DTC114YE - NPN Digital Transistors

SeCoS

📥 Download Datasheet

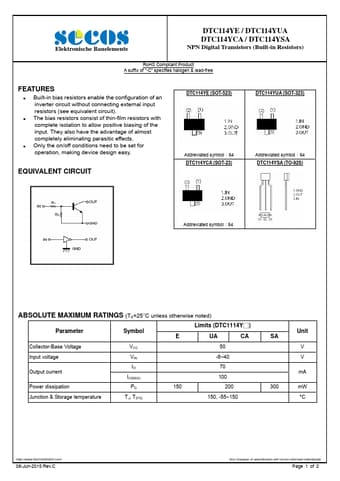

DTC114YE Datasheet Preview — Preview of DTC114YE PDF

datasheet Preview Page 2

Datasheet Details

Part number	DTC114YE
Manufacturer	SeCoS
File Size	248.00 KB
Description	NPN Digital Transistors
Datasheet	DTC114YE-SeCoS.pdf

DTC114YE Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
