DTC124EKA - NPN Digital Transistors

Product Overview

SeCoS

📥 Download Datasheet

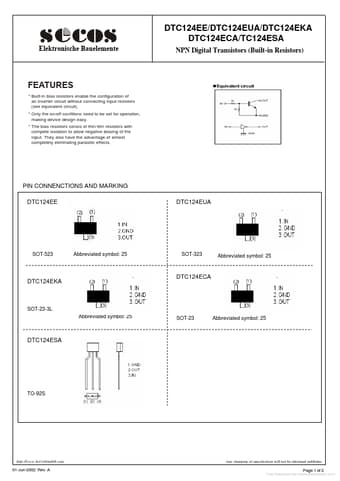

DTC124EKA NPN Digital Transistors by SeCoS - Datasheet Preview — Datasheet preview – DTC124EKA

Datasheet Details

Part number	DTC124EKA
Manufacturer	SeCoS
File Size	233.23 KB
Description	NPN Digital Transistors
Datasheet	DTC124EKA Datasheet
Note	This datasheet PDF includes multiple part numbers: DTC124EKA, DTC124ECA. Please refer to the document for exact specifications by model.
Additional preview pages of the DTC124EKA datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting input resistors (see equivalent circuit).
Only the on/off confitions need to be set for operation, making device design easy.
The bias resistors consis of thin-film resistors with compete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. PIN.
