GBJ25G - 25.0 AMP Glass Passivated Bridge Rectifiers

Product Overview

SeCoS

Part number	GBJ25G
Manufacturer	SeCoS
File Size	201.33 KB
Description	25.0 AMP Glass Passivated Bridge Rectifiers
Datasheet	GBJ25G Datasheet
Note	This datasheet PDF includes multiple part numbers: GBJ25G, GBJ25A. Please refer to the document for exact specifications by model.

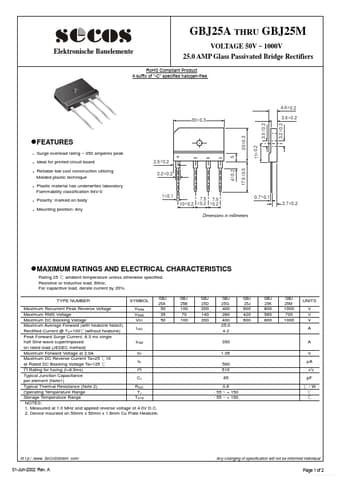

Additional preview pages of the GBJ25G datasheet.

5 20 ± 0.3 UNITS V V V A A V µA A2S Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 Maximum RMS Voltage VRMS 35 70 140 280 Maximum DC Blocking Voltage VDC 50 100 200 400 Maximum Average Forward (with heatsink Note2) 25.0 I(AV) Rectified Current @ TC=100к(without heatsink) 4.2 Peak Forward Surge Current, 8.3 ms single IFSM 350 half Sine-wave superimposed on rated load (JEDEC method) Maximum Forward Voltage at 2.0A VF 1.05 Maximum DC Reverse Current Ta=25 к†††††††††††††††††††††††††1.
