GBJ2510, GBJ25005, Bridge Rectifier

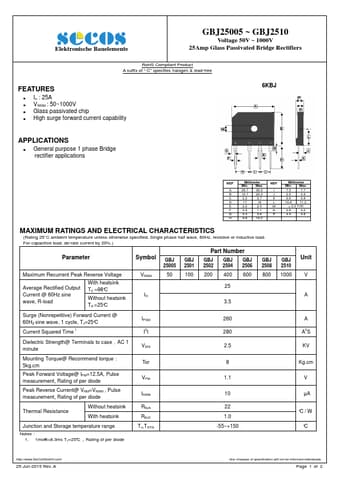

Elektronische Bauelemente GBJ25005 ~ GBJ2510 Voltage 50V ~ 1000V 25Amp Glass Passivated Bridge Rectifiers RoHS Compliant Product A suffix of “-C” sp.

GBJ25005_SeCoS.pdf

GBJ2510 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ2510, GBJ25005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBJ2510, GBJ25005

Manufacturer:

SeCoS

File Size:

192.22 KB

Description:

Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: GBJ2510, GBJ25005.
Please refer to the document for exact specifications by model.

Applications

* General purpose 1 phase Bridge rectifier applications REF. A B C D E F G H Millimeter Min. Max. 29.7 30.3 19.7 20.3 2.3 2.7 17 18 2.0 2.4 0.9 1.1 3.4 3.8 9.8 10.2 REF. I J K L M N P Millimeter Min. Max. 7.3 7.7 2.5 3.9 0.6 0.8 10.8 11.2 φ3.3 TYP. 3.8 4.2 4.4 4.8 MAXIMUM RATINGS AND ELECTRICAL C
