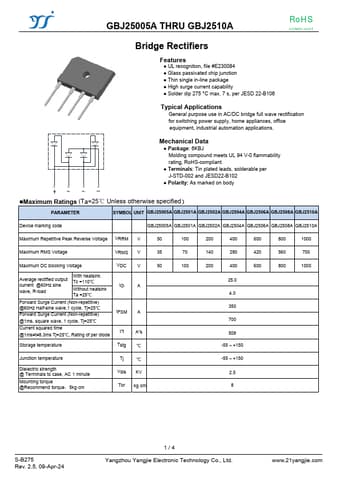

GBJ2510A Datasheet, Rectifier, Yangzhou Yangjie

✔ GBJ2510A Features

UL recognition, file #E230084
Glass passivated chip junction
Thin single in-line package
High surge current capability
Solder dip 275 °C max. 7 s, per JESD 22-B

✔ GBJ2510A Application

General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, off

PDF File Details

Yangzhou Yangjie manufacturer logo

Part number:

GBJ2510A

Manufacturer:

Yangzhou Yangjie

File Size:

222.19kb

Download:

📄 Datasheet

Description:

Bridge rectifier.

📥 Download PDF (222.19kb)
