GBJ2512, GBJ25005 Datasheet - Sirectifier

GBJ2512 Single Phase Bridge Rectifiers

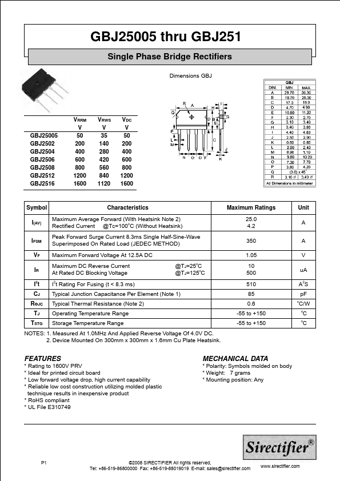

GBJ25005 thru GBJ251 Single Phase Bridge Rectifiers Dimensions GBJ GBJ25005 GBJ2502 GBJ2504 GBJ2506 GBJ2508 GBJ2512 GBJ2516 VRRM V 50 200 400 600 800 1200 1600 VRWS V 35 140 280 420 560 840 1120 VDC V 50 200 400 600 800 1200 1600 Symbol Characteristics Maximum Ratings I(AV) Maximum Average Forward (With Heatsink Note 2) Rectified Current @TC=100oC (Without Heatsink) 25.0 4.2 IFSM Peak Forward Surge Current 8.3ms Single Half-Sine-Wave Superimposed On Rated Load (JEDEC METHOD) 350 V.

GBJ25005-sirectifier.pdf

GBJ2512 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBJ2512, GBJ25005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBJ2512, GBJ25005

Manufacturer:

Sirectifier

File Size:

102.29 KB

Description:

Single phase bridge rectifiers.

Note:

This datasheet PDF includes multiple part numbers: GBJ2512, GBJ25005.
Please refer to the document for exact specifications by model.
