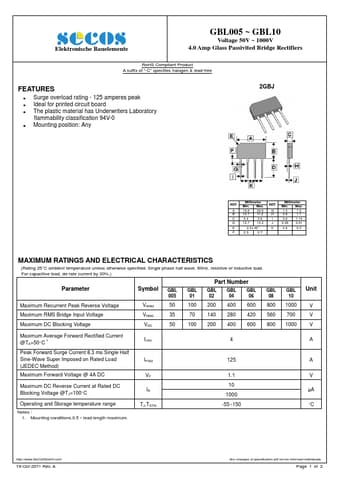

GBL005 - 4.0 Amp Glass Passivited Bridge Rectifiers

SeCoS

Datasheet Details

Surge overload rating - 125 amperes peak Ideal for printed circuit board The plastic material has Underwriters Laboratory flammability classification 94V-0 Mounting position: Any 2GBJ REF. A B C D E F Millimeter Min. Max. 19.6 10.7 20.6 11.2 3.4 3.6 12.7 14.2 2.5x 45° 2.3 2.7 REF. G H I J K Millimeter Min. Max. 1.3 1.5 0.9 1.1 0.9 1.14 0.38 0.51 4.8 5.3.
