GBU8005

8.0Amp Glass Passivited Bridge Rectifiers

GBU8005 Features

* Io : 8A VRRM : 50~1000V Glass passivated chip High surge forward current capability GBU APPLICATIONS General purpose 1 phase Bridge rectifier applications REF. A B C D E F G Millimeter Min. Max. 21.7 22.3 18.2 18.8 3

* 45° TYP. 17.5 18.5 1.8 2.54 0.9 1.27 3.3 3.8 REF. H I J K L M Millimeter

GBU8005 Datasheet (263.15 KB)

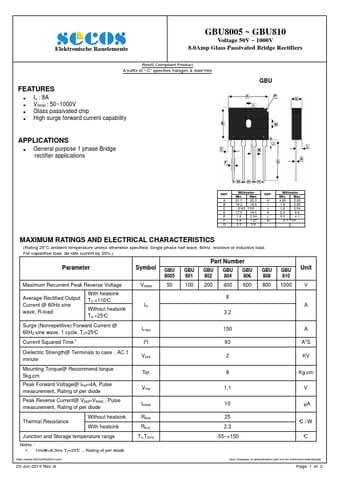

Preview of GBU8005 PDF

Datasheet Details

Part number:

GBU8005

Manufacturer:

SeCoS

File Size:

263.15 KB

Description:

8.0amp glass passivited bridge rectifiers.
Elektronische Bauelemente GBU8005 ~ GBU810 Voltage 50V ~ 1000V 8.0Amp Glass Passivated Bridge Rectifiers RoHS Compliant Product A suffix of “-C” spe.
