KBL08G - 4.0Amp Glass Passivated Bridge Rectifiers

This page provides the datasheet information for the KBL08G, a member of the KBL005G 4.0Amp Glass Passivated Bridge Rectifiers family.

Datasheet Summary

Features

  • Surge overload rating.
  • 125 Amperes peak Ideal for printed circuit board Plastic material has underwriters laboratory flammability classification 94V-0 Mounting position: Any KBL REF. A B C D E Millimeter Min. Max. 18.5 15.2 19.5 16.3 6.0 6.5 13.9 14.9 (4.0) x 45° REF. F G H I Millimeter Min. Max. 4.6 5.6 1.8 2.2 19.0 - 1.2 TYP.

📥 Download Datasheet

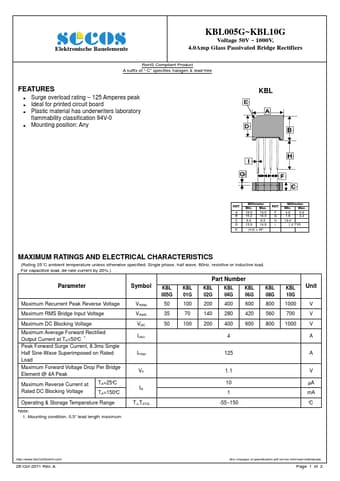

Datasheet preview – KBL08G

Datasheet Details

Part number KBL08G
Manufacturer SeCoS
File Size 139.06 KB
Description 4.0Amp Glass Passivated Bridge Rectifiers
Datasheet download datasheet KBL08G Datasheet
Additional preview pages of the KBL08G datasheet.
