S79L09

Negative Voltage Regulator

S79L09 Features

* Short Circuit Current Limiting

* Output Current Up To 100mA

* Thermal Overload Shutdown Protection SEATING PLANE b1 L e1 e b C REF. A S1 b b1 C Millimeter Min. Max. 4.45 4.7 1.02 0.36 0.51 0.36 0.76 0.36 0.51 REF. D E L e1 e Millimeter Min. Max. 4.44 4.7 3.30 3.81 12.70 1.150

S79L09 Datasheet (335.67 KB)

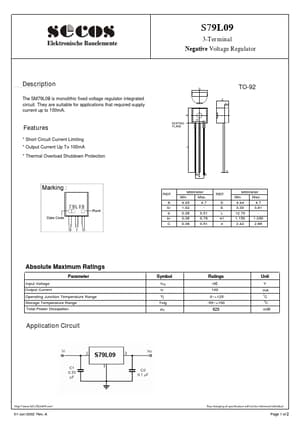

Preview of S79L09 PDF

Datasheet Details

Part number:

S79L09

Manufacturer:

SeCoS

File Size:

335.67 KB

Description:

Negative voltage regulator.
