S79L15 Negative Voltage Regulator

S79L15 Description

S79L15 Elektronische Bauelemente 3-Terminal Negative Voltage Regulator www.DataSheet4U.net .
D TO-92 E S1 The SM79L15 is monolithic fixed voltage regulator integrated circuit.

S79L15 Features

* Short Circuit Current Limiting
* Output Current Up To 100mA
* Thermal Overload Shutdown Protection SEATING PLANE b1 L e1 e b C REF. A S1 b b1 C Millimeter Min. Max. 4.45 4.7 1.02 0.36 0.51 0.36 0.76 0.36 0.51 REF. D E L e1 e Millimeter Min. Max. 4.44 4.7 3.30 3.81 12.70 1.150

📥 Download Datasheet

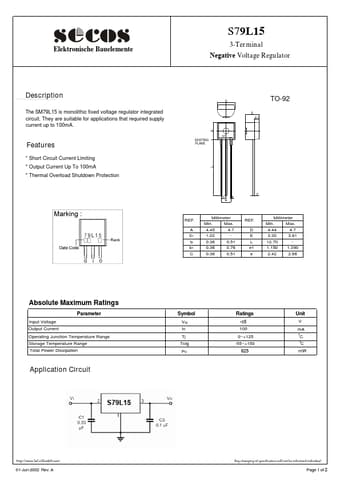

Preview of S79L15 PDF
datasheet Preview Page 2

Datasheet Details

Part number
S79L15
Manufacturer
SeCoS
File Size
390.38 KB
Datasheet
S79L15_SeCoS.pdf
Description
Negative Voltage Regulator
