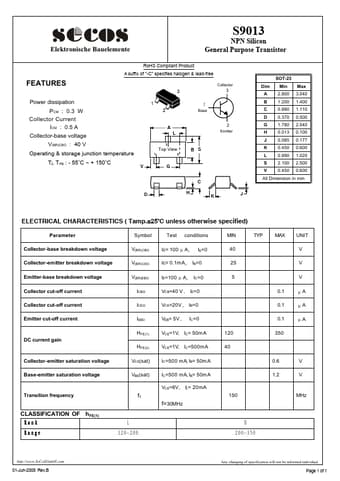

S9013
FEATURES
Ro HS pliant Product A suffix of "-C" specifies halogen & lead-free
Collector 33
Power dissipation PCM : 0.3 W
Collector Current ICM : 0.5 A
Collector-base voltage V(BR)CBO : 40 V
Operating & storage junction temperature Tj, Tstg :
- 55OC ~ + 150OC
1 2
Top View
1 Base
2 Emitter
SOT-23 Dim Min Max
A 2.800 3.040 B 1.200 1.400 C 0.890 1.110 D 0.370 0.500 G 1.780 2.040 H 0.013 0.100 J 0.085 0.177 K 0.450 0.600 L 0.890 1.020 S 2.100 2.500 V 0.450 0.600 All Dimension in mm
ELECTRICAL CHARACTERISTICS ( Tamp.=25OC unless otherwise specified)
Parameter
Symbol
Test conditions
MIN TYP MAX
Collector-base breakdown voltage Collector-emitter breakdown voltage
V(BR)CBO V(BR)CEO
Ic= 100 A IE=0 Ic= 0.1m A IB=0
40 25
Emitter-base breakdown voltage
V(BR)EBO
IE=100 A IC=0
Collector cut-off current
ICBO VCB=40 V , IE=0
Collector cut-off current
ICEO VCE=20V ,...
