SBESD9N5C

Ultra Low Capactance ESD Protection

SBESD9N5C Features

* Ultra-low clamping voltage

* Low leakage current

* Small package MARKING U  = Date Code PACKAGE INFORMATION Package MPQ DFN1006-2L 10K Leader Size 7 inch Bi-direction ABSOLUTE MAXIMUM RATINGS (TA=25°C unless otherwise specified) Rating Symbol IEC 61000-4-2 (ESD) Air co

SBESD9N5C General Description

The SBESD9N5C is a transient voltage suppressors (TVS) which provide a very high level protection for sensitive electronic components that may be subjected to electrostatic discharge (ESD). It is designed to replace multiplayer varistors (MLV) in consumer equipments applications such as mobile phone.

SBESD9N5C Datasheet (280.55 KB)

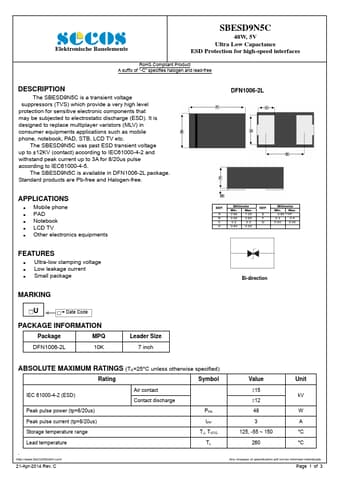

Preview of SBESD9N5C PDF

Datasheet Details

Part number:

SBESD9N5C

Manufacturer:

SeCoS

File Size:

280.55 KB

Description:

Ultra low capactance esd protection.
Elektronische Bauelemente SBESD9N5C 48W, 5V Ultra Low Capactance ESD Protection for high-speed interfaces RoHS Compliant Product A suffix of “-C” sp.
