SCS202NF

Dual Series Chips Surface Mount Switching Diode

SCS202NF Features

* Four types of packaging are available. High speed. (trr=1.5ns Typ.) Suitable for high packing density layout. High reliability. 1 Top View 2 B S G C H K J Construction Silicon epitaxial planar SOT-323(SC-70) Dim Min 1.800 1.150 0.800 0.300 1.200 0.000 0.100 0.350 0.590 2.000 0.280 Max 2.200 1.

SCS202NF Datasheet (429.02 KB)

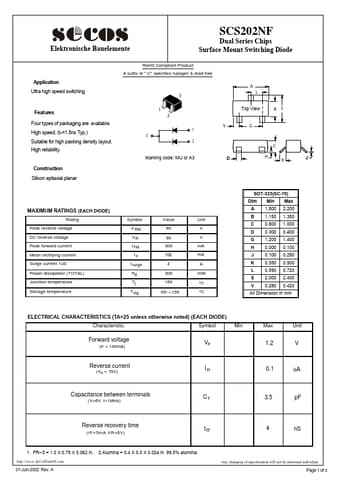

Preview of SCS202NF PDF

Datasheet Details

Part number:

SCS202NF

Manufacturer:

SeCoS

File Size:

429.02 KB

Description:

Dual series chips surface mount switching diode.
Elektronische Bauelemente RoHS Compliant Product Dual Series Chips Surface Mount Switching Diode SCS202NF A suffix of "-C" specifies halogen & lead.
