SCS202NK - Plastic-Encapsulated Small Signal Switching Diode

SCS202NK Description

SCS202NK Elektronische Bauelemente 80 V, 300 mA Plastic-Encapsulated Small Signal Switching Diode RoHS Compliant Product A suffix of “-C” specifies h.

SCS202NK Features

* z z z SOT-23 A L 3 3 High reliability Suitable for high packing density layout Fast reverse recovery time : trr = 1.5ns (typ. ) 1 Top View 2 C B 1 2 K E D PACKAGING INFORMATION Weight: 0.0078 g (Approx. ) 3 MARKING CODE N F G Millimeter Min. Max. 2.80 3.04 2.10 2.55 1.20 1.40 0.89 1.15 1.80

📥 Download Datasheet

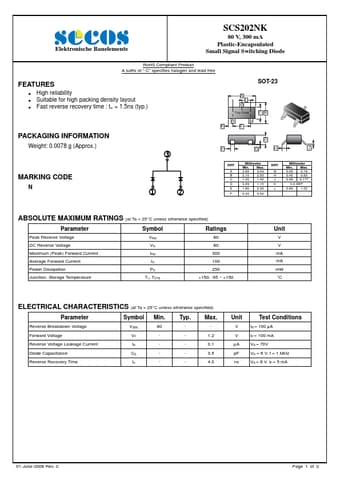

Preview of SCS202NK PDF
datasheet Preview Page 2

Datasheet Details

Part number
SCS202NK
Manufacturer
SeCoS
File Size
370.50 KB
Datasheet
SCS202NK_SeCoS.pdf
Description
Plastic-Encapsulated Small Signal Switching Diode
