SD101CW - Plastic-Encapsulate Schottky Diodes

This page provides the datasheet information for the SD101CW, a member of the SD101AW Plastic-Encapsulate Schottky Diodes family.

Datasheet Summary

Features

  • Low Forward Voltage Drop.
  • Guard Ring Construction for Transient Protection.
  • Negligible Reverse Recovery Time SOD-123.

📥 Download Datasheet

Datasheet preview – SD101CW

Datasheet Details

Part number SD101CW
Manufacturer SeCoS
File Size 452.46 KB
Description Plastic-Encapsulate Schottky Diodes
Datasheet download datasheet SD101CW Datasheet
Additional preview pages of the SD101CW datasheet.

📁 Similar Datasheet

  • SD101CW - Two Terminals Schottky Barrier Diodes (TAITRON)
  • SD101CW - SCHOTTKY BARRIER SWITCHING DIODE (Diodes)
  • SD101CW - (SD101AW - SD101CW) Schottky Diodes (General Semiconductor)
  • SD101CW - Small Signal Schottky Diodes (MCC)
  • SD101CW - 400mW Schottky Barrier Switching Diode (Taiwan Semiconductor)
  • SD101CW - Small Signal Schottky Diodes (Vishay)
  • SD101CW - Schottky Barrier Diode (GME)
  • SD101CW - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Won-Top Electronics)
  • SD101CW - SMALL SIGNAL DIODE (Rectron)
  • SD101CW - SMD Schottky Barrier Diodes (Diotec)
Other Datasheets by SeCoS
  • SD101CWS - Surface Mount Schottky Barrier Rectifiers
  • SD101AW - Plastic-Encapsulate Schottky Diodes
  • SD101AWS - Surface Mount Schottky Barrier Rectifiers
  • SD101BW - Plastic-Encapsulate Schottky Diodes
  • SD101BWS - Surface Mount Schottky Barrier Rectifiers
  • SD103A - 0.35AMP Schottky Barrier Rectifier
  • SD103ATW - Surface Mount Schottky Diode Array
  • SD103AW - Surface Mount Schottky Barrier Rectifiers

Full PDF Text Transcription

Click to expand full text

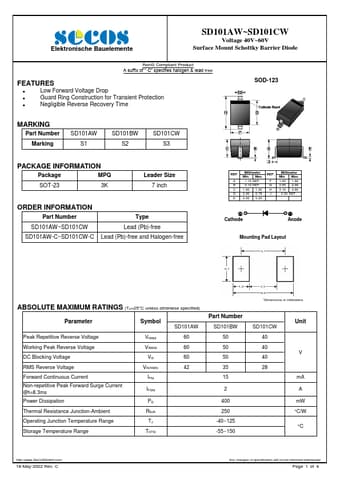

Elektronische Bauelemente SD101AW~SD101CW Voltage 40V~60V Surface Mount Schottky Barrier Diode RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Low Forward Voltage Drop  Guard Ring Construction for Transient Protection  Negligible Reverse Recovery Time SOD-123 MARKING Part Number Marking SD101AW S1 SD101BW S2 SD101CW S3 PACKAGE INFORMATION Package MPQ SOT-23 3K Leader Size 7 inch ORDER INFORMATION Part Number Type SD101AW~SD101CW Lead (Pb)-free SD101AW-C~SD101CW-C Lead (Pb)-free and Halogen-free REF. A B C D E Millimeter Min. Max. 1.15 REF. 0.10 REF. 1.00 1.30 0.30 0.78 0.05 0.25 REF. F G H J Millimeter Min. Max. 1.45 1.80 2.55 2.90 3.10 3.85 0.50 REF.
