SD101AWS - Surface Mount Schottky Barrier Rectifiers

Datasheet Summary

Features

. Low forward voltage drop . Guard ring construction for transient protection . Negligible reverse recovery time . Low reverse capacitance RoHS Compliant Product A suffix of "-C" specifies halogen & lead-free SOD-323 .012 (0.3) Cathode Band .076 (1.95) .065 (1.65) .112 (2.85) .100 (2.55).

Datasheet Details

Part number	SD101AWS
Manufacturer	SeCoS
File Size	220.84 KB
Description	Surface Mount Schottky Barrier Rectifiers
Datasheet	SD101AWS Datasheet
Additional preview pages of the SD101AWS datasheet.

📁 Similar Datasheet

SD101AWS - Schottky Barrier Diode (GME)

SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (Diodes)

SD101AWS - SCHOTTKY DIODES (WEJ)

SD101AWS - Small Signal Schottky Diodes (MCC)

SD101AWS - Schottky Diodes (LGE)

SD101AWS - Surface Mount Schottky Barrier Diodes (WEITRON)

SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER (Pan Jit International)

SD101AWS - SCHOTTKY BARRIER DIODES (EIC)

SD101AWS - SCHOTTKY DIODES (RECTRON)

SD101AWS - SURFACE MOUNT SCHOTTKY BARRIER DIODE (SEMTECH)

Full PDF Text Transcription

Click to expand full text

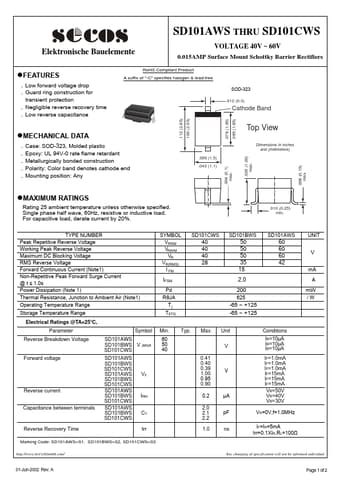

SD101AWS THRU SD101CWS Elektronische Bauelemente VOLTAGE 40V ~ 60V 0.015AMP Surface Mount Schottky Barrier Rectifiers ●FEATURES . Low forward voltage drop . Guard ring construction for transient protection . Negligible reverse recovery time . Low reverse capacitance RoHS Compliant Product A suffix of "-C" specifies halogen & lead-free SOD-323 .012 (0.3) Cathode Band .076 (1.95) .065 (1.65) .112 (2.85) .100 (2.55) ●MECHANICAL DATA . Case: SOD-323, Molded plastic . Epoxy: UL 94V-0 rate flame retardant . Metallurgically bonded construction . Polarity: Color band denotes cathode end . Mounting position: Any .059 (1.5) .043 (1.1) Top View Dimensions in inches and (millimeters) .006 (0.15) max. .004 (0.1) max. .039 (1.00) max.
