SG7806

3-Terminal Positive Voltage Regulator

SeCoS

SG7806 Features

* of there trgulators make them essentially immune to overload. Features

* 5V,6V,8V,9V,10V,12V,15V,18V,24V Output Voltage Available

* Output Transistor Safe-Area Compensation

* No External Components

* Internal Thermal Overload Protection

* Internal Short-Circuit Current Limiting

SG7806 General Description

The SG78XX series of fixed-voltage monolithic intergratedcircuit voltage regulators designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can delive.

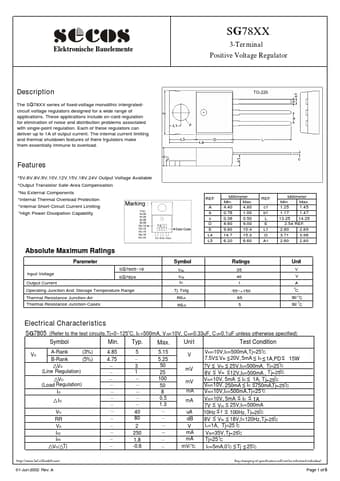

SG7806 Datasheet (469.16 KB)

SG7806 Datasheet Preview — Preview of SG7806 PDF

Datasheet Details

Part number:

SG7806

Manufacturer:

SeCoS

File Size:

469.16 KB

Description:

3-terminal positive voltage regulator.
