SG7808, SG7805, 3-Terminal Positive Voltage Regulator

Elektronische Bauelemente SG78XX 3-Terminal Positive Voltage Regulator .
The SG78XX series of fixed-voltage monolithic intergratedcircuit voltage regulators designed for a wide range of applications.

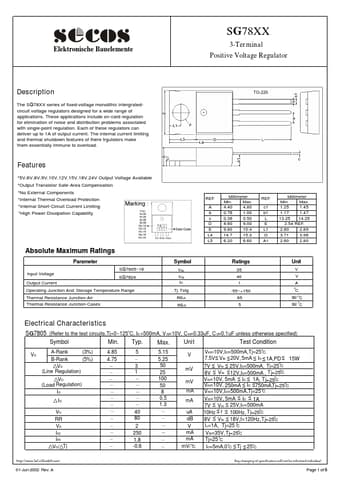

datasheet Preview Page 1 from Datasheet4u.com

SG7805-SeCoS.pdf

SG7808 Datasheet Preview — This datasheet PDF includes multiple part numbers: SG7808, SG7805. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SG7808, SG7805

Manufacturer:

SeCoS

File Size:

469.16 KB

Description:

3-Terminal Positive Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: SG7808, SG7805.
Please refer to the document for exact specifications by model.

Features

* of there trgulators make them essentially immune to overload. Features
* 5V,6V,8V,9V,10V,12V,15V,18V,24V Output Voltage Available
* Output Transistor Safe-Area Compensation
* No External Components
* Internal Thermal Overload Protection
* Internal Short-Circuit Current Limiting
