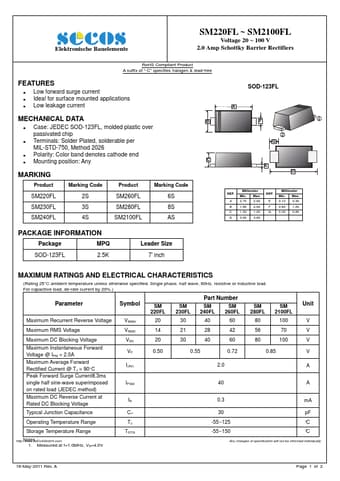

SM2100FL
FEATURES
Low forward surge current Ideal for surface mounted applications Low leakage current
SOD-123FL
MECHANICAL DATA
Case: JEDEC SOD-123FL, molded plastic over passivated chip Terminals: Solder Plated, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting position: Any
MARKING
Product Marking Code Product Marking Code
SM220FL SM230FL SM240FL
2S 3S 4S
SM260FL SM280FL SM2100FL
6S 8S AS
REF. A B C D
Millimeter Min. Max. 2.70 1.80 1.55 3.50 2.90 2.00 1.25 3.90
REF. E F G
Millimeter Min. Max. 0.10 0.80 0.35 0.30 1.20 0.85
PACKAGE INFORMATION
Package SOD-123FL MPQ 2.5K Leader Size
.Data Sheet.net/
7’ inch
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Rating 25°C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, de-rate current by 20%.)
Part Number Parameter
Maximum Recurrent Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage...
