SR530, SR520 5.0 Amp Schottky Barrier Rectifiers

SR530 Description

Elektronische Bauelemente SR520 ~ SR560 Voltage 20 ~ 60 V 5.0 Amp Schottky Barrier Rectifiers .

SR530 Features

* Low forward voltage drop High current capability High reliability High surge current capability Epitaxial construction RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free DO-27 CA MECHANICAL DATA Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Axial leads, solder

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR530, SR520. Please refer to the document for exact specifications by model.

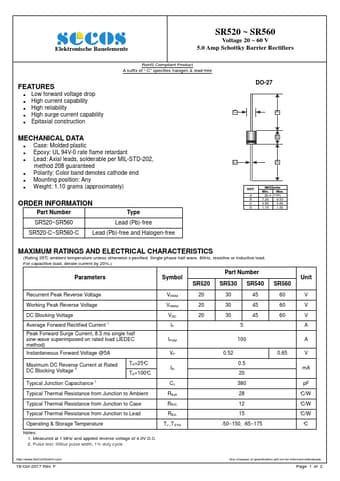

datasheet Preview Page 2

Datasheet Details

Part number
SR530, SR520
Manufacturer
SeCoS
File Size
222.65 KB
Datasheet
SR520-SeCoS.pdf
Description
5.0 Amp Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SR530, SR520.
Please refer to the document for exact specifications by model.
