SR520

5.0 Amp Schottky Barrier Rectifiers

SR520 Features

* Low forward voltage drop High current capability High reliability High surge current capability Epitaxial construction RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free DO-27 CA MECHANICAL DATA Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Axial leads, solder

SR520 Datasheet (222.65 KB)

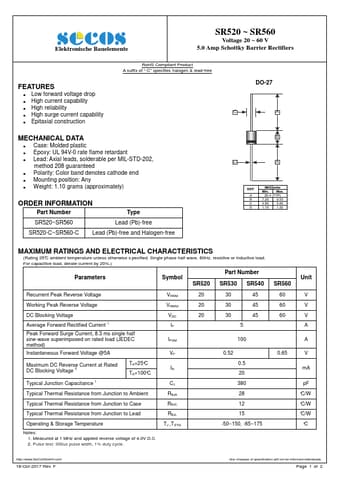

Preview of SR520 PDF

Datasheet Details

Part number:

SR520

Manufacturer:

SeCoS

File Size:

222.65 KB

Description:

5.0 amp schottky barrier rectifiers.
