SR527SW Datasheet - Seiko

SR527SW Silver Oxide Battery

SR527SW 319 22mAh Mercury Free 1. Specifications 2. Dimensions Model Nominal Voltage Nominal Capacity Standard Discharge Current Operating Temperature Range Weight Dimensions Diameter Height SR527SW 1.55V 22mAh　[cov:1.20V] 40μA －10℃～＋60℃ 0.29g 5.80㎜ 2.70㎜ 3. Characteristics Discharge Characteristics Low Temperature Characteristics Measurement conditions: Temp: 23 deg C Load: 36 kΩ Shelf Life Measurement conditions: Temp：-10 deg C Load:2kΩ 7.8msec pulse Ant.

SR527SW Datasheet (596.61 KB)

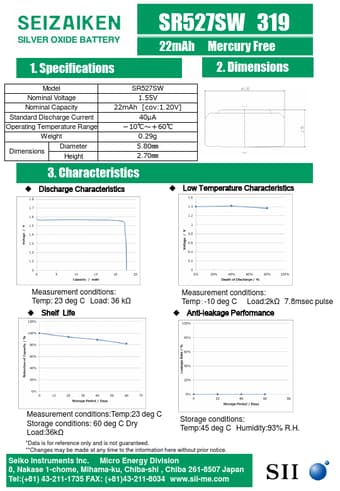

Preview of SR527SW PDF
SR527SW Datasheet Preview Page 2

Datasheet Details

Part number:

SR527SW

Manufacturer:

Seiko

File Size:

596.61 KB

Description:

Silver oxide battery.
