SR5200 - 5.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE

Product Overview

WON-TOP

📥 Download Datasheet

SR5200 5.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE by WON-TOP - Datasheet Preview — Datasheet preview – SR5200

Datasheet Details

Part number	SR5200
Manufacturer	WON-TOP
File Size	38.32 KB
Description	5.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	SR5200 Datasheet
Note	This datasheet PDF includes multiple part numbers: SR5200, SR5150-WON. Please refer to the document for exact specifications by model.

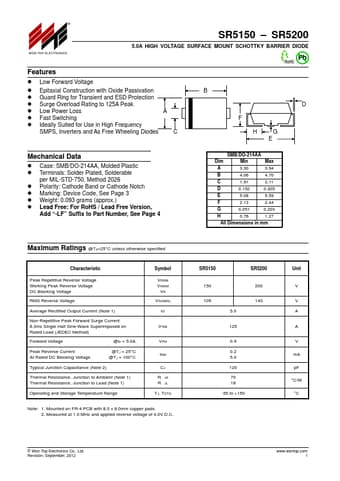

Additional preview pages of the SR5200 datasheet.

Product details

Features

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 125A Peak.
Low Power Loss A.
Fast Switching.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C B F HG E D Mechanical Data.
Case: SMB/DO-214AA, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band or Cathode.
