* Low profile package
* Glass Passivated Chip Juntion
* Low reverse current
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case : SMAM
* Terminals: Solderable per MIL-STD-750, Method 2026
* Weight: 27 mgram (Approximate) SMAM MARKING Part Num

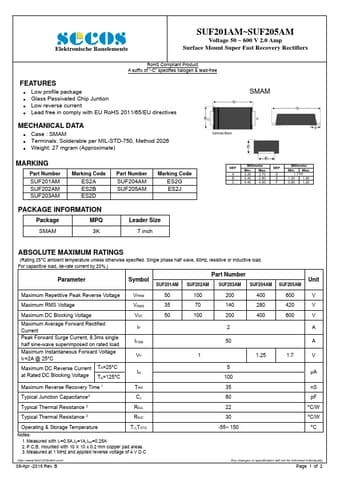

SUF205AM Datasheet (219.36 KB)
SUF205AM
SeCoS
219.36 KB
Surface mount super fast recovery rectifiers.
Elektronische Bauelemente
SUF201AM~SUF205AM
Voltage 50 ~ 600 V 2.0 Amp Surface Mount Super Fast Recovery Rectifiers
RoHS Compliant Product A suffix .
